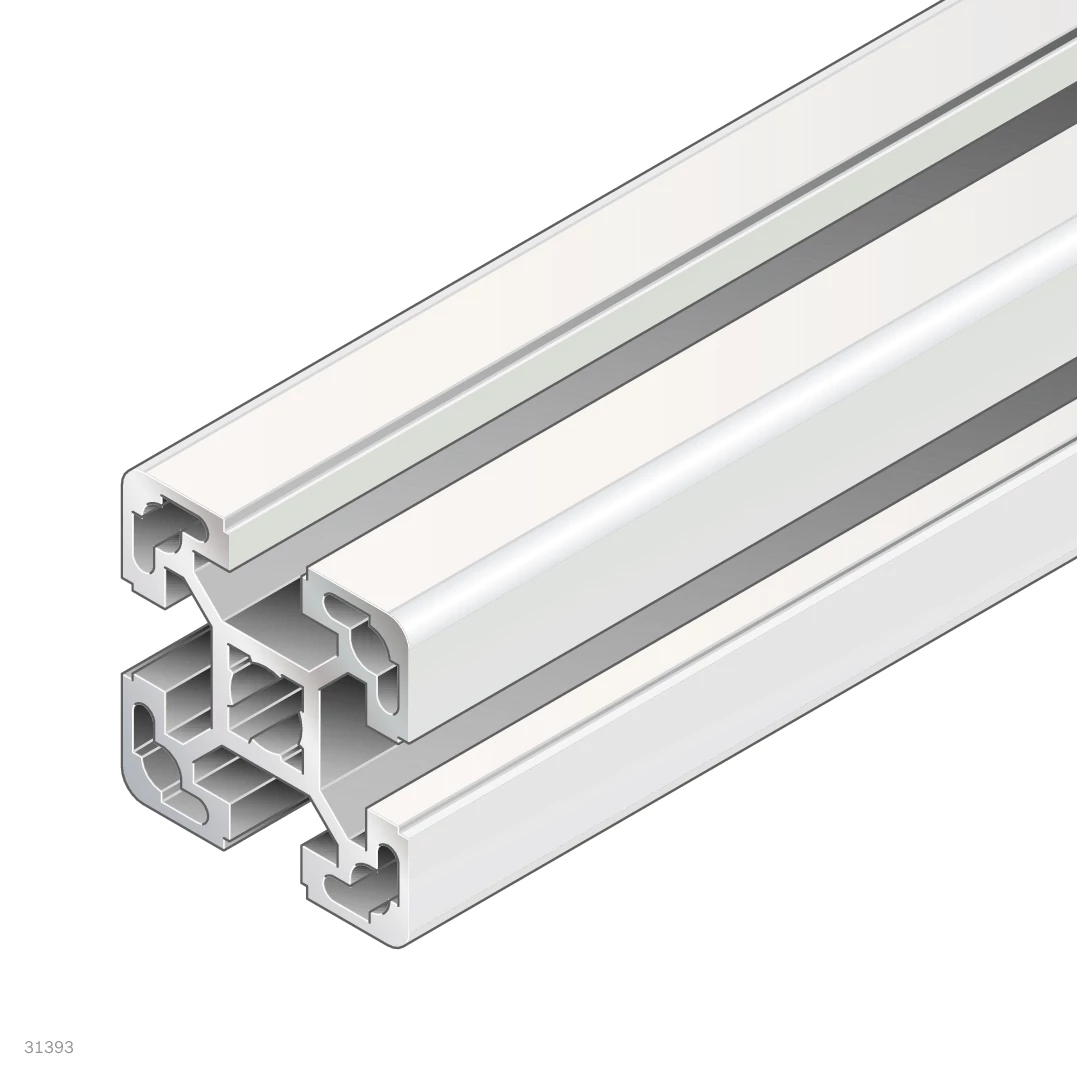

Bosch Rexroth Alumínium profil 40X40L 3842993120
Leírás
| Product attributes | |
|---|---|
| Modular dimension [mm] | 40 |
| Cross-section | 40x40L |
| Profile slot | 10 |
| Dimensions | 40x40 |
| Profile type | Standard |
| Open slots | 4 |
| Packaging unit | 1 |
| Length [Lmax] [mm] | 6070 |
| Length [Lmin] [mm] | 50 |
| Torsional moment of inertia [It] [cm⁴] | 1.3 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 9.1 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 9.1 |
| Moment of torsion resistance [Wt] [cm³] | 0.74 |
| Recommended accessories | Cover cap 40x40, signal gray,Cover cap 40x40, black,Cover cap with hole 40x40, signal gray,Cover cap with hole 40x40, black |
| Moment of resistance in the x-direction [Wx] [cm³] | 4.5 |
| Moment of resistance in the y-direction [Wy] [cm³] | 4.5 |
| Product description | 40x40L -/- |
| Profile surface [A] [cm²] | 5.6 |
| Mass [m] [kg] | 1.5 |
| Weight [kg] | 0 |
