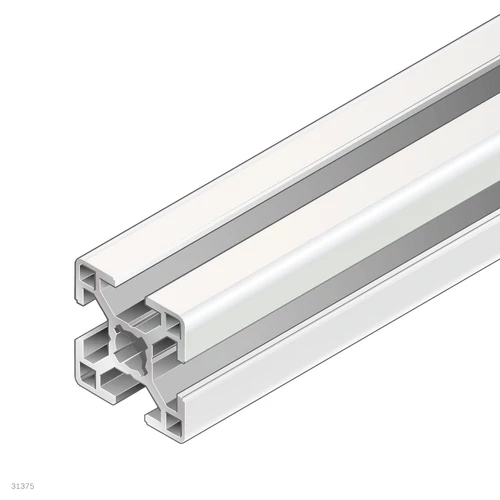

Bosch Rexroth Alumínium profil 30X30 3842557206
Leírás
| Product attributes | |
|---|---|
| Modular dimension [mm] | 30 |
| Cross-section | 30x30 |
| Profile slot | 8 |
| Dimensions | 30x30 |
| Open slots | 4 |
| Profile type | Standard |
| Length [Lmax] [mm] | 6070 |
| Delivery unit | 20 |
| Moment of resistance in the x-direction [Wx] [cm³] | 1.8 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 2.8 |
| Profile surface [A] [cm²] | 3.1 |
| Product description | 30x30 -/- |
| Mass [m] [kg] | 0.9 |
| Torsional moment of inertia [It] [cm⁴] | 0.29 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 2.8 |
| Moment of torsion resistance [Wt] [cm³] | 0.33 |
| Recommended accessories | Cover cap 30x30, signal gray,Cover cap 30x30, black,Cover cap with hole 30x30, signal gray,Cover cap with hole 30x30, black |
| Moment of resistance in the y-direction [Wy] [cm³] | 1.8 |
| Weight [kg] | 116 |
