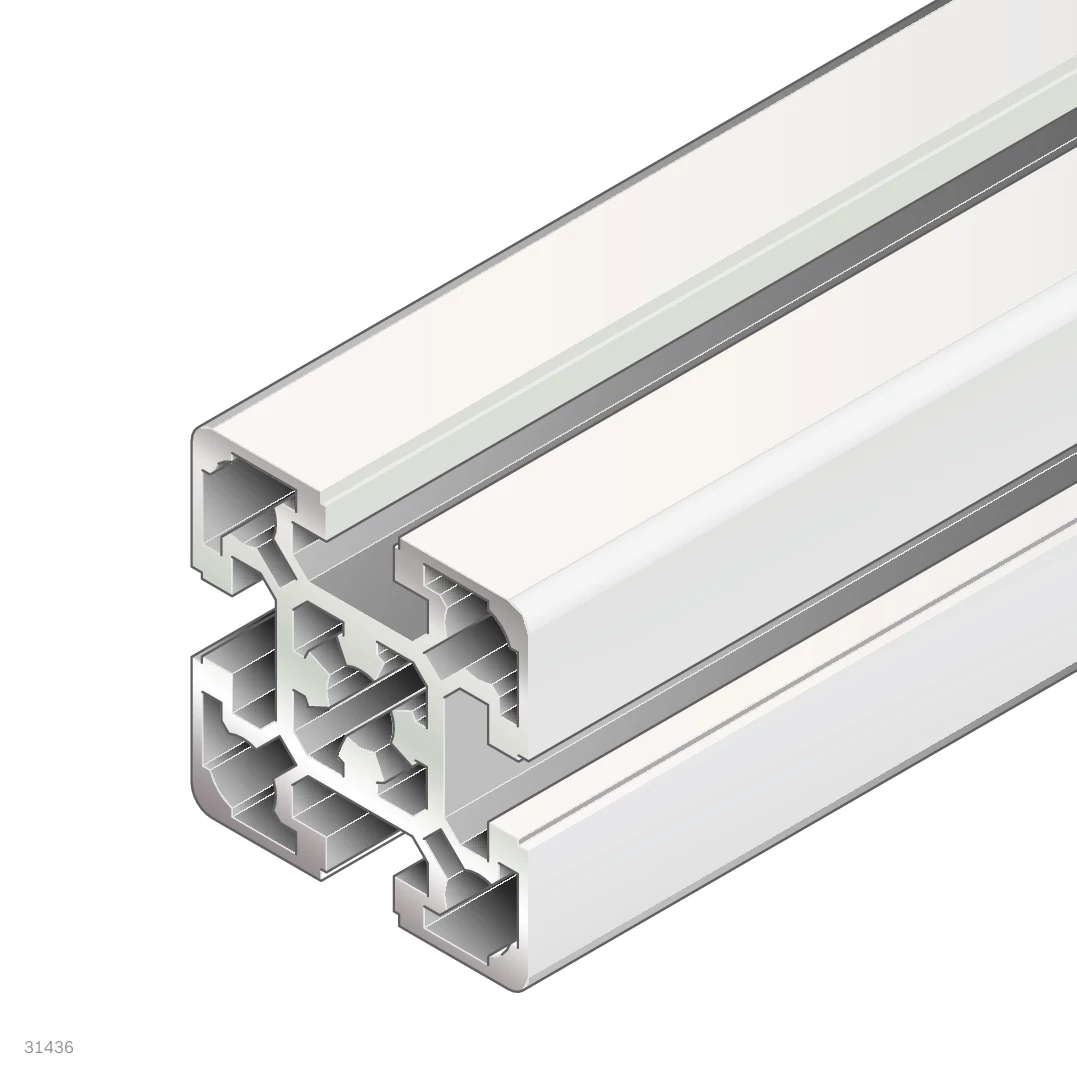

Bosch Rexroth Alumínium profil 50X50L 3842529351
Leírás
| Product attributes | |
|---|---|
| Modular dimension [mm] | 50 |
| Cross-section | 50x50L |
| Profile slot | 10 |
| Dimensions | 50x50 |
| Open slots | 4 |
| Profile type | Standard |
| Length [Lmax] [mm] | 6070 |
| Delivery unit | 20 |
| Moment of resistance in the x-direction [Wx] [cm³] | 8.5 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 21.2 |
| Profile surface [A] [cm²] | 9.3 |
| Product description | 50x50L -/- |
| Mass [m] [kg] | 2.5 |
| Torsional moment of inertia [It] [cm⁴] | 5.37 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 21.2 |
| Moment of torsion resistance [Wt] [cm³] | 4.3 |
| Recommended accessories | Cover cap 50x50, black,Cover cap 50x50, signal gray,Cover cap with hole 50x50, black,Cover cap with hole 50x50, signal gray |
| Moment of resistance in the y-direction [Wy] [cm³] | 8.5 |
| Weight [kg] | 316 |
